The Journey of a Request to the Backend

BackendSystem DesignNetworkingPerformance

From the frontend through the kernel to the backend process, a request goes through a fascinating and complex lifecycle before it is actually processed.

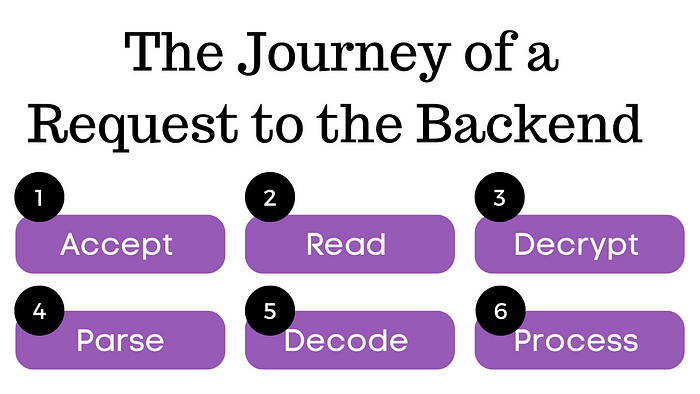

Request Flow Diagram

Knowing each step helps backend developers architect systems that are robust and performant. Let's explore the 6 key stages a request undergoes before processing.

1. Accept

Connections arrive on ports like 443 using TCP or QUIC. The OS kernel completes the handshake and adds the connection to an accept queue. The backend app must call the accept() syscall to obtain a file descriptor.

Potential bottleneck

If your backend is slow to accept connections, the queue fills up and causes connection failures.

To improve this, you can:

  • Increase the backlog (queue size)
  • Use a dedicated accept thread
  • Leverage SO_REUSEPORT to allow multiple threads/processes to own separate accept queues

2. Read

Once accepted, data is sent as raw bytes over the connection. These bytes:

  • Are encrypted if TLS is used
  • May be compressed
  • Are protocol-defined (like HTTP)

The OS kernel buffers packets in a receive queue until the backend app reads them using read() or recv() syscalls. These syscalls transfer data to user-space memory.

No full request yet

At this stage, the backend only sees encrypted raw bytes — it might be part of one request or several.

3. Decrypt

Once in memory, encrypted bytes must be decrypted using SSL libraries like OpenSSL. Only then can we see headers and metadata.

Decryption is CPU-intensive

It can be executed in the same thread or a dedicated thread to offload CPU.

4. Parse

With plaintext available, the backend parses it using the agreed protocol.

  • HTTP/1.1 uses content-length or chunked encoding
  • HTTP/2 or HTTP/3 require decoding binary frames
Parsing costs CPU

Parsing overhead increases with protocols like HTTP/2 and HTTP/3 due to their complexity.

5. Decode

Once parsed, the request body (like JSON or Protobuf) must be deserialized into native language objects. For example:

const data = JSON.parse(jsonString);

Other decoding operations may include:

  • UTF-8 decoding: Raw bytes must be properly interpreted
  • Decompression: If the body is compressed, it must be unzipped before reading
Not a free operation

Deserialization and decompression require CPU cycles and memory.

6. Process

Finally, the request is understood and ready to be processed. This may involve:

  • Querying a database
  • File I/O
  • Business logic
  • Sending responses
Use worker pools

It's recommended to offload processing to worker threads or a thread pool.

Summary

Each backend request undergoes six steps:

  1. Accept the connection
  2. Read bytes from the kernel buffer
  3. Decrypt the content
  4. Parse the protocol
  5. Decode the body
  6. Process the request

Understanding this journey enables backend developers to design systems where no single step becomes a bottleneck. Some systems use one thread for everything, others assign a thread per stage — the choice depends on performance goals and use cases.

Design for flexibility

You can merge or split responsibilities between threads depending on load, architecture, and performance.
